View larger
Images are for illustrative purposes only. Please refer to data sheet for details

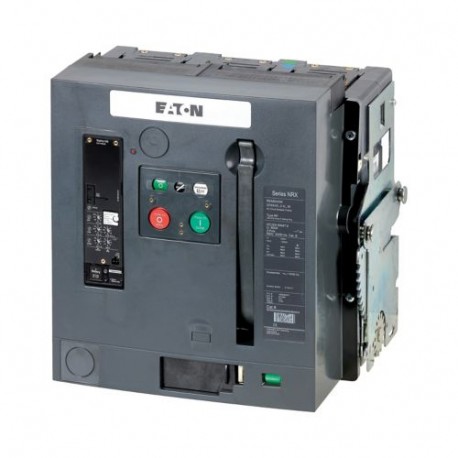

IZMX40B3-V20W 149769 EATON ELECTRIC Circuit-breaker, 3p, 2000 A, withdrawable
IZMX40B3-V20W
149769
EATON - MOELLER
1 Pcs.
Circuit-breaker, 3p, 2000 A, withdrawable
Circuit-breaker IZMX40 ( Air circuit-breakers/switch-disconnectors), 3 pole, Current Range: Up to 4000 A, Rated current = rated uninterrupted current( In = Iu): 2000 A, up to 440 V 50/60 Hz( Icu): 66 kA, up to 440 V 50/60 Hz( Ics): 66 kA, Overload release, min.( Ir): 1000 A, Overload release, max.( Ir): 2000 A, Installation type: Withdrawable, Standard/Approval: IEC, Protective function: Selective operation
Automation > Power circuit-breaker for trafo/generator/installation protection
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number
149769
Model Code
IZMX40B3-V20W
EAN
4015081463855
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
76 kg
Compliances
RoHS conform
Delivery program
Type
Circuit breaker
Number of poles
Three-pole
Technical data - electrical
Rated uninterrupted current (Iu)
2000 A
Technical data - mechanical
Mounting Method
Withdrawable
Position of connection for main current circuit
Back side
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2000 A |
| Integrated earth fault protection (EF007296) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Back |
| Complete device with protection unit (EF008906) | No |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | No |
