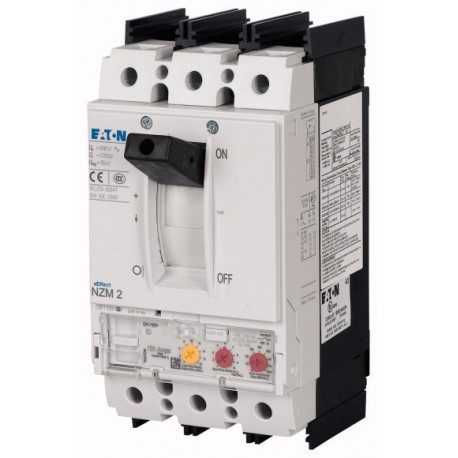

NZMN2-VEF175-BT-NA 107594 EATON ELECTRIC Circuit-breaker, 3p, 175A, box terminals
NZMN2-VEF175-BT-NA
107594
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing robust three-phase isolation, the Eaton Moeller NZMN2-VEF175-BT-NA 107594 circuit-breaker utilizes integrated electronic releases to protect branch circuits from overloads and sudden short-circuit surges. These compact molded case units are standard additions to motor control centers and industrial power distribution panels globally.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Vertical and 90° in all directions: With XFI earth-fault release:
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 175 A
- Adjustment range undelayed short-circuit release (EF007131): 2100 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲Delivery program
Fixed overload releases Ir
R.m.s. value measurement and “thermal memory”
adjustable time delay setting to overcome current peaks tr: 2 – 20 s at 6 x Ir
Adjustable delay time tsd: Steps: 0, 20, 60, 100, 200, 300, 500, 750, 1000 ms
i2t constant function: fixed OFF
Technical data
Damp heat, cyclic, to IEC 60068-2-30
| Vertical and 90° in all directions | |
| With XFI earth-fault release: | |
| - NZM1, N1, NZM2, N2: vertical and 90° in all directions | |
| with plug-in unit | |
| - NZM1, N1, NZM2, N2: vertical, 90° right/left | |
| with withdrawable unit: | |
| - NZM3, N3: vertical, 90° right/left | |
| - NZM4, N4: vertical | |
| with remote operator: | |
| - NZM2, N(S)2, NZM3, N(S)3, NZM4, N(S)4: vertical and 90° in all directions | |
With door coupling rotary handle: IP66
Phase isolator and strip terminal: IP00
Temperature dependency, Derating
Effective power loss
Switching capacity of NA switches (UL489, CSA 22.2 No. 5.1)
Short-circuit current rating SCCRSCCR 240 V 60 Hz [Icu]
Switching capacity of NA switches (UL489, CSA 22.2 No. 5.1)
Short-circuit current rating SCCRSCCR 480 V 60 Hz [Icu]
Switching capacity of NA switches (UL489, CSA 22.2 No. 5.1)
Short-circuit current rating SCCRSCCR 600Y/347 V 60 Hz [Icu]
2 x (18 … 16) mm2
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
Approvals
Characteristics
Dimensions
② Minimum clearance to adjacent parts
