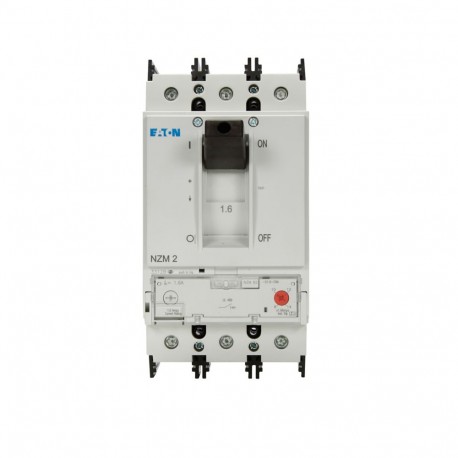

NZMB2-S1,6-BT-CNA 107651 Y7-107651 EATON ELECTRIC Circuit-breaker, 3p, 1.6A, box terminals
NZMB2-S1,6-BT-CNA
107651
Y7-107651
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZMB2-S1,6-BT-CNA circuit-breaker provides precise overcurrent protection for lower-amperage industrial circuits and automation hardware. It functions by interrupting abnormal current spikes to prevent damage to sensitive components within electrical panels.
Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): None A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 8 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
UL/CSA
CSA certified
CSA (Class No. 1432-01)
CSA (File No. 22086)
Specially designed for North America
UL (Category Control Number DKPU2)
UL (File No. E31593)
UL 489
CSA-C22.2 No. 5-09
Product specifications
Motor drive optional
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Damp heat, constant, to IEC 60068-2-78
IP20
IP40 (with insulating surround)
IP00 (terminations, phase isolator and strip terminal)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Max. 10 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
6500 operations at 415 V AC-3
M8 at rear-side screw connection
Max. 20 mm x 5 mm direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
6 mm² - 11 mm² (1x) direct at switch rear-side connection
4 mm² - 350 mm² (1x) at box terminal
