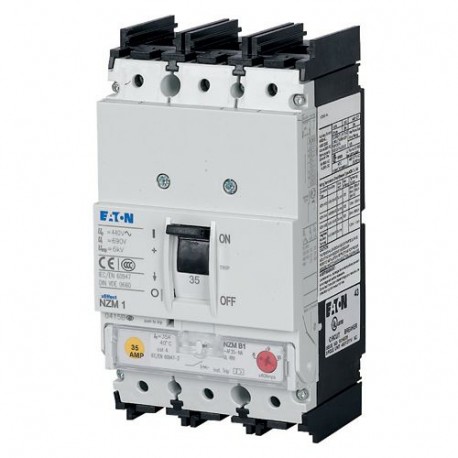

NZMN1-AF125-NA 281569 Y7-281569 EATON ELECTRIC Circuit-breaker, 3p, 125A
NZMN1-AF125-NA
281569
Y7-281569
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller circuit-breaker, 3p, 125A (NZMN1-AF125-NA) is an electromechanical protective device designed to automatically interrupt electrical power flow during an overload or short circuit, safeguarding downstream distribution infrastructure. These components are standard across industrial, commercial, and residential switchboards to maintain circuit integrity and prevent equipment damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 125 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 125 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
IEC/EN 60947
CSA (File No. 22086)
CE marking
IEC
CSA certified
CSA-C22.2 No. 5-09
UL (Category Control Number DIVQ)
CSA (Class No. 1432-01)
UL 489
Specially designed for North America
UL listed
UL (File No. E31593)
IEC 60947-2
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 690 V
DIN rail (top hat rail) mounting optional
Built-in device fixed built-in technique
Damp heat, cyclic, to IEC 60068-2-30
300 V AC (between the auxiliary contacts)
IP20 (basic degree of protection, in the operating controls area)
160 A (380/400 V AC-1, making and breaking capacity)
125 A (415 V AC-1, making and breaking capacity)
125 A (690 V AC -1, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 9 segments of 9 mm x 0.8 mm at box terminal
10000 operations at 400 V AC-1
System and cable protection
16 mm² - 18 mm² (2x)
M6 at rear-side screw connection
Max. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 9 mm² (2x) direct at switch rear-side connection
6 mm² (1x) at tunnel terminal
6 mm² - 12 mm² (1x) at box terminal
4 mm² - 2/0 mm² (1x) at box terminal
4 mm² - 2/0 mm² (1x) direct at switch rear-side connection
