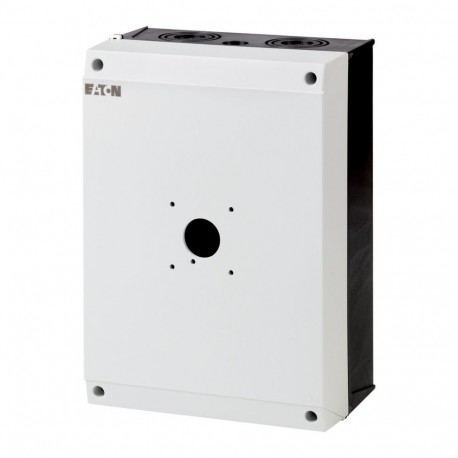

Industrial Automation Bussines and Industrial Control Devices Switching Devices CI-K5-P3-100 Eaton Moeller® series CI-K Insulated enclosure, HxWxD=280x200x125mm for P3 Small enclosure, degree of protection IP65, glass-fiber reinforced polycarbonate, enclosure base RAL 9005, black/operator only RAL 7035, light gray, metric cable entry knockouts top, bottom and in the back plate, hard metric cable entry knockouts, control cable entry, indicator light L-. can be mounted in base knock-out M20/M25, for P3-../Z switch

Automation > Empty enclosure for switchgear
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty industrial control installations, the Eaton Moeller insulated enclosure, part number CI-K5-P3-100, protects enclosed switching devices against external hazards. These surface-mounting housings are routinely installed in machine building and factory power distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing material (EF001596): Plastic
  • Width (EF000008): 200 mm
  • Height (EF000040): 160 mm
  • Depth (EF000049): 280 mm
  • With transparent cover (EF001094): No
  • Suitable for emergency stop (EF001433): No
  • Model (EF000010): Surface mounting
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
207446
Model Code
CI-K5-P3-100
EAN
4015082074463
Product Length/Depth
280 mm
Product Height
160 mm
Product Width
200 mm
Product Weight
1.078 kg
Compliances
CE

Product specifications

10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
with an additional PE clamp
Enclosure material
Plastic
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
IP65
NEMA 12
Model
