> EATON - MOELLER > Insulating Enclosures > 021982

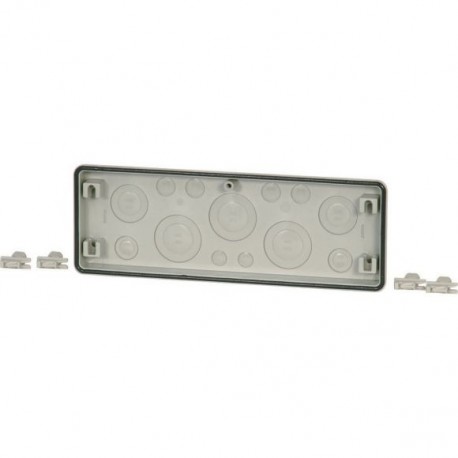

EATON - MOELLER FL4-5 FL4-5 021982 Y7-21982 EATON ELECTRIC Flange, knockout 2x M16, 4x M20, 2x M25/16, 2x M40/25, 3x M50/32, HxWxD.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL4-5 021982 Y7-21982 EATON ELECTRIC Flange, knockout 2x M16, 4x M20, 2x M25/16, 2x M40/25, 3x M50/32, HxWxD..

FL4-5

021982

Y7-21982

EATON - MOELLER

1 Pcs.

Flange, knockout 2x M16, 4x M20, 2x M25/16, 2x M40/25, 3x M50/32, HxWxD=116x329x23mm Cable grommets; Predrills 2x M16; 4x M20; 2x M25/16; 2x M40/25; 3x Eaton xEnergy Safety Ci LV systems LV switchgear. Flange, knockout 2x M16, 4x M20, 2x M25/16, 2x M40/25, 3x M50/32, HxWxD=116x329x23mm Flange made of insulating material, degree of protection IP65, sponge-rubber, captive gasket, quick mounting using wedge-lock fasteners (included as standard), for 375mm enclosure dimensions, cable entry: 2xM16, 4xM20, 2xM25/16, 2xM40/25, 3xM50/32, RAL 7035

Automation > Gland plate for small distribution boards/switchgear cabinets
Insulating Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Safety Ci flange plate
Catalog Number
021982
Model Code
FL4-5
EAN
4015080219828
Product Length/Depth
115 mm
Product Height
23 mm
Product Width
330 mm
Product Weight
0.272 kg
Compliances
RoHS conform

Product specifications

Used with
375 mm (enclosure dimensions)
Accessory for basic enclosures
Basic enclosure
xEnergy Safety Ci
Special features
Type
  • Accessory for basic enclosures
  • Basic enclosure
  • xEnergy Safety Ci
Features
Pre-stamping
Accessory/spare part type
Flanges
Unit type
Modular system
Number of connector holes
0
Suitable for nominal thread (PG) - max
50
Suitable for nominal thread (PG) - min
16
Cable entry type
2 x M40/25
2 x M25/16
4 x M20
3 x M50/32
2 x M16
Degree of protection
Other
Surface protection
Untreated
Shape
Straight
Material
Plastic
Model
Cable screw gland
Thread type
Metric
Thickness
4 mm
Suitable for cable diameter - max
0 mm
Suitable for cable diameter - min
0 mm

ETIM for 021982 Distribution boards (EC000211)
Feature Name Feature Value
Model (EF000010) Cable screw gland
Type (EF001139) Straight
Width (EF000008) 330 mm
Height (EF000040) 23 mm
Thickness (EF000125) 4 mm
Material (EF002169) Plastic
Surface protection (EF000139) Untreated
Degree of protection (NEMA) (EF011959) Other
Pre-stamping (EF001039) Yes
Number of connector holes (EF005554) 0
Suitable for cable diameter (EF005466) 0 mm
Thread type (EF001758) Metric
Suitable for nominal thread metric/PG (EF012565) 16
