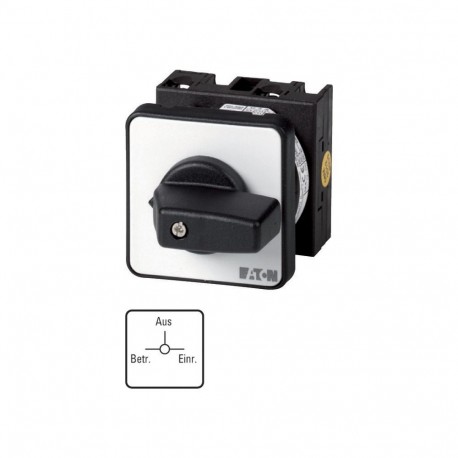

EATON - MOELLER T0-2-8517/EZ T0-2-8517/EZ 011848 Y7-11848 EATON ELECTRIC Changeoverswitches, Contacts: 3, 20 A, front plate: Betrieb-Aus-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8517/EZ 011848 Y7-11848 EATON ELECTRIC Changeoverswitches, Contacts: 3, 20 A, front plate: Betrieb-Aus-..

T0-2-8517/EZ

011848

Y7-11848

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 3, 20 A, front plate: Betrieb-Aus-Einrichten, 90 °, maintained, centre mounting Switch Switch; 3-pole; 20a; rating Plate: Betrieb-Aus-Einrichten; 90 °; Mounting with central fixing Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, centre mounting, 2 contact unit(s), Contacts: 3, 90 °, maintained, Without 0 (Off) position, Betrieb-Aus-Einrichten, Design number 8517 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: Betrieb-Aus-Einrichten

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-2-8517/EZ changeover switch facilitates manual redirection of electrical pathways between alternative circuits or power sources.

Changeover and reversing switches are essential in automation enclosures for managing operational modes and motor direction safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
011848
Model Code
T0-2-8517/EZ
EAN
4015080118480
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
VDE 0660
UL 60947-4-1
CE
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA
UL
CSA-C22.2 No. 94
CSA File No.: 012528
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
