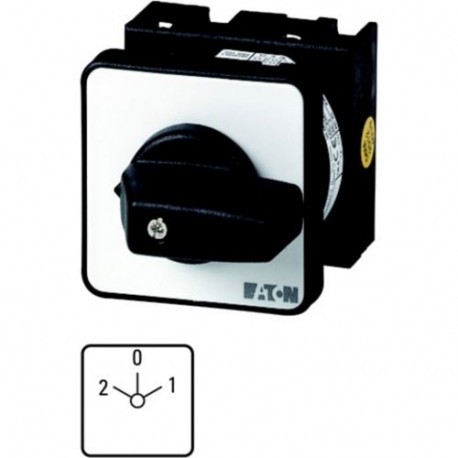

EATON - MOELLER T0-1-78/EZ T0-1-78/EZ 009370 Y7-9370 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 2-0-1, 90 °, ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-78/EZ 009370 Y7-9370 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 2-0-1, 90 °, ma..

T0-1-78/EZ

009370

Y7-9370

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: 2-0-1, 90 °, maintained, centre mounting Switch Switch; 2-pole; 20a; rating Plate: 2-0-1; 90 °; Mounting with central fixing Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 2-0-1, Design number 78 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T0-1-78/EZ changeover switch routes electrical currents between alternate circuits, making it ideal for manual source selection and load management in control panels. These robust switches are standard additions to industrial setups requiring reliable mechanical switching capability.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
009370
Model Code
T0-1-78/EZ
EAN
4015080093701
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA Class No.: 3211-05
UL Category Control No.: NLRV
VDE 0660
CE
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
IEC/EN 60947
UL 60947-4-1
UL File No.: E36332
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
