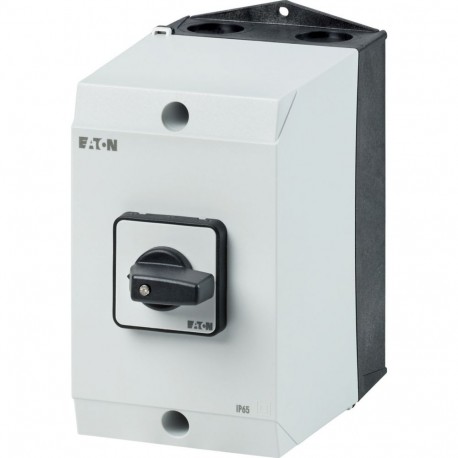

EATON - MOELLER T3-5-8369/I2 T3-5-8369/I2 207536 Y7-207536 EATON ELECTRIC Changeoverswitches, Contacts: 10, 32 A, front plate: 1-2, 90 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-8369/I2 207536 Y7-207536 EATON ELECTRIC Changeoverswitches, Contacts: 10, 32 A, front plate: 1-2, 90 °,..

T3-5-8369/I2

207536

Y7-207536

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 10, 32 A, front plate: 1-2, 90 °, maintained, surface mounting T3-5-8369/I2 Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, surface mounting, 5 contact unit(s), Contacts: 10, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8369 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A changeover switch provides manual routing capabilities in complex electrical networks, commonly used to select between alternate power inputs or control circuit states. The Eaton Moeller T3-5-8369/I2 is housed in a protective plastic enclosure designed to withstand demanding industrial environments. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 5
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
207536
Model Code
T3-5-8369/I2
EAN
4015082075361
Product Length/Depth
181 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.634 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
UL 508
IEC 60947
EN 60947-3
VDE
UL Category Control No.: NLRV
IEC/EN 60204
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60947
IEC/EN 60947-3
UL
CE
CSA File No.: 012528
UL File No.: E36332
CSA Class No.: 3211-05
CSA
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
