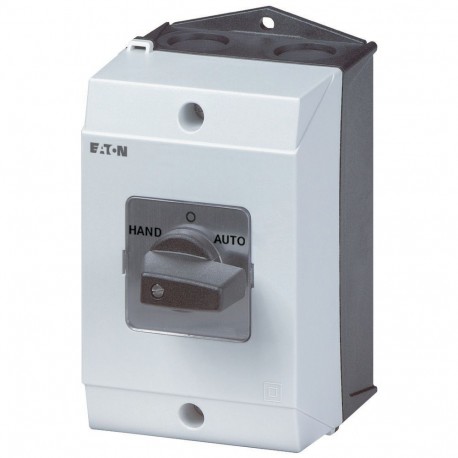

EATON - MOELLER T3-4-8213/I2 T3-4-8213/I2 207191 Y7-207191 EATON ELECTRIC Changeoverswitches, Contacts: 8, 32 A, front plate: 1-0-2, 60 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-8213/I2 207191 Y7-207191 EATON ELECTRIC Changeoverswitches, Contacts: 8, 32 A, front plate: 1-0-2, 60 °..

T3-4-8213/I2

207191

Y7-207191

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 32 A, front plate: 1-0-2, 60 °, maintained, surface mounting T3-4-8213/I2 Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, surface mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8213 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 8, Degree of Protection: IP65, Design: surface mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeoverswitch (T3-4-8213/I2) provides reliable circuit transfer capabilities in enclosed industrial control environments, allowing technicians to switch between alternative power paths. Housed assemblies protect internal contacts from harsh environmental conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
207191
Model Code
T3-4-8213/I2
EAN
4015082071912
Product Length/Depth
181 mm
Product Height
127 mm
Product Width
100 mm
Product Weight
0.681 kg
Compliances
CE Marked
Certifications
EN 60947-3
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947
VDE
CSA-C22.2 No. 94
CSA
UL 60947-4-1
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
IEC/EN 60204
UL
IEC/EN 60947
UL File No.: E36332
VDE 0660
CE
IEC/EN 60947-3
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
