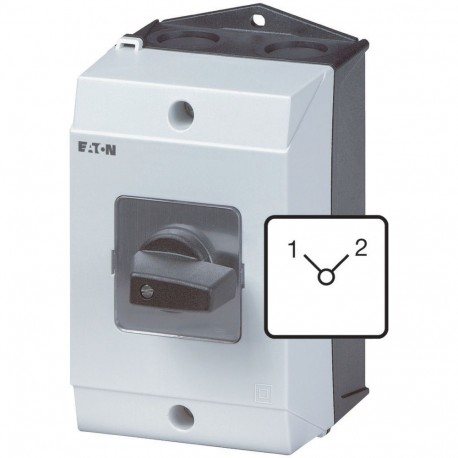

T3-2-8221/I2 207180 Y7-207180 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 1-2, 90 °, ..
T3-2-8221/I2
207180
Y7-207180
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T3-2-8221/I2 changeoverswitches are housed control units designed to route power between alternative supply lines or operational circuits in industrial installations. These enclosed switches provide reliable source selection and load management in demanding environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): Yes
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CE
UL
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CSA
VDE 0660
UL 60947-4-1
CSA File No.: 012528
UL File No.: E36332
UL Category Control No.: NLRV
CSA Class No.: 3211-05
