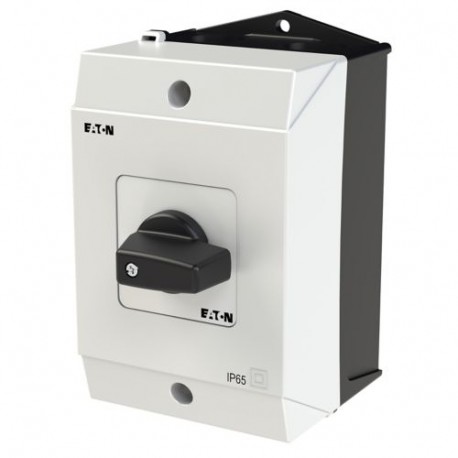

EATON - MOELLER T0-2-8211/I1 T0-2-8211/I1 207102 Y7-207102 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8211/I1 207102 Y7-207102 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °..

T0-2-8211/I1

207102

Y7-207102

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °, maintained, surface mounting T0-2-8211/I1 Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, surface mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: IP65, Design: surface mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeoverswitch (part number T0-2-8211/I1) functions as a manual control device designed to toggle between distinct electrical circuits or power sources in industrial control gear. Such switches are standard in machinery and automation systems requiring dependable multi-position route selection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
207102
Model Code
T0-2-8211/I1
EAN
4015082071028
Product Length/Depth
137 mm
Product Height
102 mm
Product Width
80 mm
Product Weight
0.264 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
