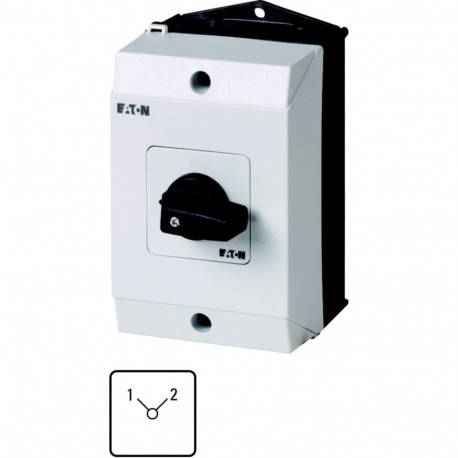

EATON - MOELLER T3-1-8220/I2 T3-1-8220/I2 207171 Y7-207171 EATON ELECTRIC Changeoverswitches, Contacts: 2, 32 A, front plate: 1-2, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-8220/I2 207171 Y7-207171 EATON ELECTRIC Changeoverswitches, Contacts: 2, 32 A, front plate: 1-2, 90 °, ..

T3-1-8220/I2

207171

Y7-207171

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 32 A, front plate: 1-2, 90 °, maintained, surface mounting T3-1-8220/I2 Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, surface mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8220 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 2, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller changeoverswitches part number T3-1-8220/I2 is an enclosed industrial switching unit utilized to safely transfer loads between different power sources or operational circuits. Changeover switches are commonly deployed in control gear systems to route electrical feeds efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
207171
Model Code
T3-1-8220/I2
EAN
4015082071714
Product Length/Depth
181 mm
Product Height
107 mm
Product Width
100 mm
Product Weight
0.389 kg
Certifications
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947
CSA
VDE 0660
CSA-C22.2 No. 94
UL 60947-4-1
UL
UL Category Control No.: NLRV
IEC/EN 60204
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-07
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
