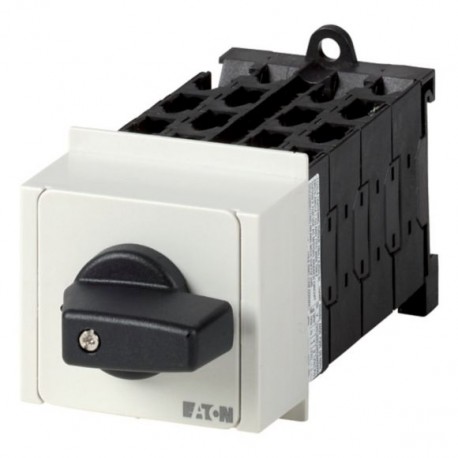

EATON - MOELLER T0-7-8371/IVS T0-7-8371/IVS 016005 Y7-16005 EATON ELECTRIC Changeoverswitches, Contacts: 14, 20 A, front plate: 1-2, 90 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-7-8371/IVS 016005 Y7-16005 EATON ELECTRIC Changeoverswitches, Contacts: 14, 20 A, front plate: 1-2, 90 °,..

T0-7-8371/IVS

016005

Y7-16005

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 14, 20 A, front plate: 1-2, 90 °, maintained, service distribution board mounting Switch Switch 14 poles 20 A Indicator plate: 1-2 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 7 contact unit(s), Contacts: 14, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8371 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 14, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-7-8371/IVS is a high-pole changeoverswitch engineered for complex switching matrices across extensive industrial control networks. Multi-pole rotary devices manage simultaneous circuit transitions in automated machinery and power systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 7
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
016005
Model Code
T0-7-8371/IVS
EAN
4015080160052
Product Length/Depth
139 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.254 kg
Certifications
CE
VDE 0660
IEC/EN 60947-3
UL
UL Category Control No.: NLRV
CSA
UL File No.: E36332
IEC/EN 60947
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
CSA File No.: 012528
IEC/EN 60204
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
