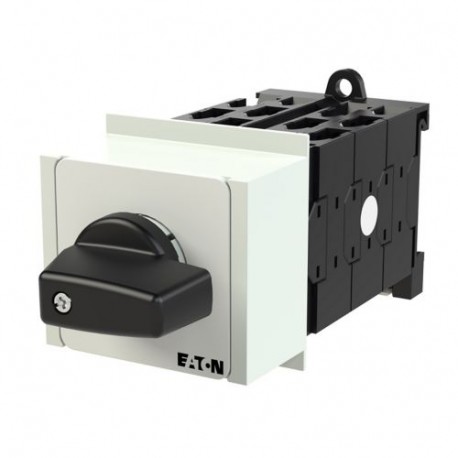

EATON - MOELLER T0-6-8362/IVS T0-6-8362/IVS 015739 Y7-15739 EATON ELECTRIC Changeoverswitches, Contacts: 12, 20 A, front plate: 1-0-2, 60 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-8362/IVS 015739 Y7-15739 EATON ELECTRIC Changeoverswitches, Contacts: 12, 20 A, front plate: 1-0-2, 60 ..

T0-6-8362/IVS

015739

Y7-15739

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 12, 20 A, front plate: 1-0-2, 60 °, maintained, service distribution board mounting Switch Switch 12 poles 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 6 contact unit(s), Contacts: 12, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8362 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Rotary changeoverswitches such as the Eaton Moeller T0-6-8362/IVS provide multi-circuit switching capabilities for complex industrial control panels and power distribution networks. Technicians use these rugged selectors to manage multiple pathways simultaneously, allowing streamlined configuration of industrial assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 6
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
015739
Model Code
T0-6-8362/IVS
EAN
4015080157397
Product Length/Depth
130 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.229 kg
Certifications
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60947-3
IEC/EN 60204
UL
CSA
UL 60947-4-1
CE
VDE 0660
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
