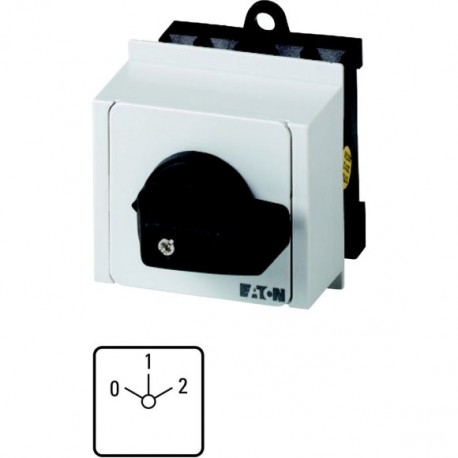

EATON - MOELLER T0-3-8451/IVS T0-3-8451/IVS 026985 Y7-26985 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 0-1-2, 60 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8451/IVS 026985 Y7-26985 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 0-1-2, 60 °..

T0-3-8451/IVS

026985

Y7-26985

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 20 A, front plate: 0-1-2, 60 °, maintained, service distribution board mounting Switch 6-pole 20 A Indicator plate: 0-1-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 0-1-2, Design number 8451 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeoverswitch (part number T0-3-8451/IVS) enables manual selection between multiple electrical sources or signal paths within control panels and distribution boards. These compact rotary switches provide reliable circuit rerouting for auxiliary equipment and automated systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
026985
Model Code
T0-3-8451/IVS
EAN
4015080269854
Product Length/Depth
101 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.155 kg
Certifications
IEC/EN 60947-3
UL File No.: E36332
CE
CSA
UL
CSA Class No.: 3211-05
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60947
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
