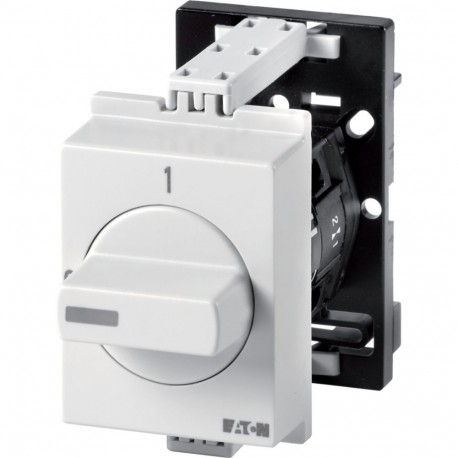

EATON - MOELLER TM-2-8211/IVS TM-2-8211/IVS 225341 Y7-225341 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8211/IVS 225341 Y7-225341 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 ..

TM-2-8211/IVS

225341

Y7-225341

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, maintained, service distribution board mounting TM-2-8211/IVS Eaton Moeller® series TM Changeoverswitches, TM, 10 A, service distribution board mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitches such as the Eaton Moeller TM-2-8211/IVS offer compact manual switching capabilities for low-current control panels and instrumentation circuits. These units are commonly integrated into distribution boards to direct signals or manage auxiliary power inputs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
225341
Model Code
TM-2-8211/IVS
EAN
4015082253417
Product Length/Depth
72.5 mm
Product Height
60 mm
Product Width
35.5 mm
Product Weight
0.058 kg
Certifications
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
UL
UL File No.: E36332
IEC/EN 60947-3
VDE 0660
CSA
UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN 60947
IEC/EN 60947-5-1
UL Category Control No.: NLRV
UL 508
CE
