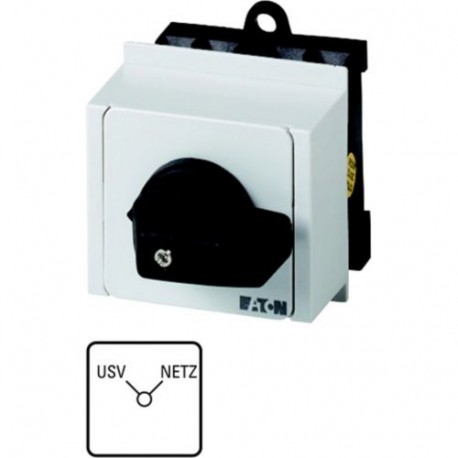

EATON - MOELLER T0-2-15542/IVS T0-2-15542/IVS 098851 Y7-98851 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: USV-NETZ, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15542/IVS 098851 Y7-98851 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: USV-NETZ, ..

T0-2-15542/IVS

098851

Y7-98851

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 20 A, front plate: USV-NETZ, 90 °, maintained, service distribution board mounting Switch 4-pole switch 20 A Indicator plate: USV-NETZ 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, Without 0 (Off) position, USV-NETZ, Design number 15542

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Eaton Moeller, the T0-2-15542/IVS changeoverswitch handles power routing tasks within distribution boards and backup systems. Switchgear assemblies rely on changeover devices to direct electrical currents between alternative supply lines without manual rewiring. Service distribution board mounting allows clean internal arrangement.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-2-15542/IVS
  • Catalogue code: 098851
  • Catalogue title: T0-2-15542/IVS 098851 Y7-98851 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: USV-NETZ, ..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Changeover switch Catalog Number 098851 Model Code T0-2-15542/IVS EAN 4015080988519 Product Length/Depth 92 mm Product Height 55 mm Product Width 54 mm Product
  • Manufacturer summary: Changeoverswitches, Contacts: 4, 20 A, front plate: USV-NETZ, 90 °, maintained, service distribution board mounting Switch 4-pole switch 20 A Indicator plate: USV-NETZ 90° Eaton Moeller® series T0 Changeoverswitches, T0,

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
098851
Model Code
T0-2-15542/IVS
EAN
4015080988519
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
IEC/EN 60204
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CE
UL 60947-4-1
IEC/EN 60947
UL
CSA
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
