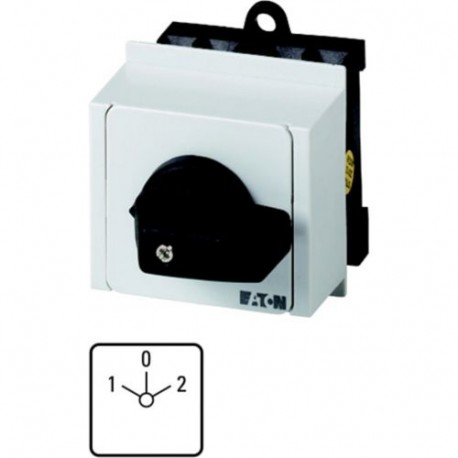

EATON - MOELLER T0-2-8211/IVS T0-2-8211/IVS 076813 Y7-76813 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8211/IVS 076813 Y7-76813 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °..

T0-2-8211/IVS

076813

Y7-76813

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 20 A, front plate: 1-0-2, 60 °, maintained, service distribution board mounting Switch 4-pole switch 20 A Indicator plate: 1-0-2 60° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitches serve as manual switching devices that route power to different circuits within industrial electrical systems. The Eaton Moeller T0-2-8211/IVS is engineered for distribution board installations where reliable two-way routing is required.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
076813
Model Code
T0-2-8211/IVS
EAN
4015080768135
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
UL
CE
IEC/EN 60947-3
UL 60947-4-1
VDE 0660
IEC/EN 60947
CSA
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
