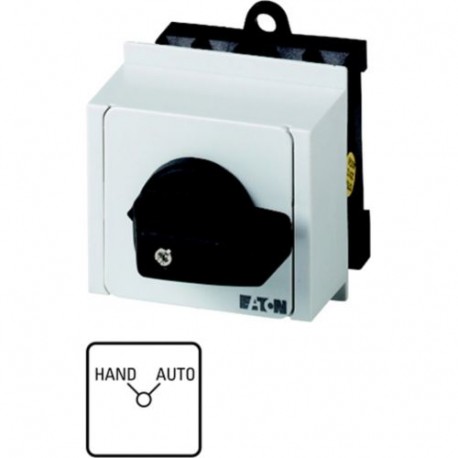

EATON - MOELLER T0-3-15453/IVS T0-3-15453/IVS 022246 Y7-22246 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: USV-NETZ, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15453/IVS 022246 Y7-22246 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: USV-NETZ, ..

T0-3-15453/IVS

022246

Y7-22246

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 20 A, front plate: USV-NETZ, 90 °, maintained, service distribution board mounting Switch Switch 6 poles 20 A Indicator plate: Hand-AUTO 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, HAND-AUTO, Design number 15453 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: HAND-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A changeoverswitch from Eaton Moeller, specifically part number T0-3-15453/IVS, is an electromechanical device designed to safely redirect electrical currents between multiple alternative power sources or operational pathways. Panel builders utilize these switches to manage manual source transitions or circuit selections. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
022246
Model Code
T0-3-15453/IVS
EAN
4015080222460
Product Length/Depth
101 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.155 kg
Certifications
IEC/EN 60947
UL File No.: E36332
CSA
CSA File No.: 012528
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
UL
CE
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL 60947-4-1
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
