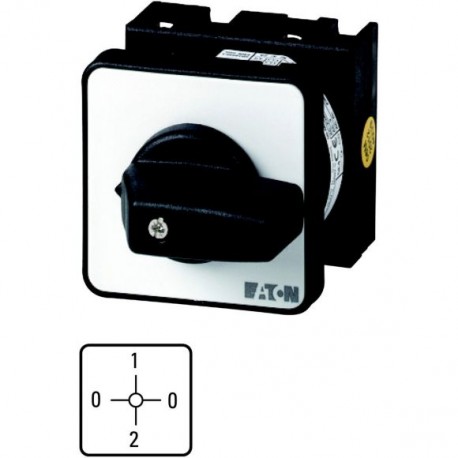

EATON - MOELLER T0-1-15109/E T0-1-15109/E 026982 Y7-26982 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1-0-1, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15109/E 026982 Y7-26982 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1-0-1, 90 °, ..

T0-1-15109/E

026982

Y7-26982

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1-0-1, 90 °, maintained, flush mounting ON-OFF 2-pole disconnector switch 20 A Indicator plate: 0-1-0-1 Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 0-1-0-1, Design number 15109 On-Off switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1-0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-1-15109/E is an on-off switch designed to manage electrical circuits and safely disconnect machinery during maintenance operations. Panel-mounted control switches are widely utilized in industrial automation to route signals, manage auxiliary equipment, and handle manual operational routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 1
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 20 A
  • Rated operation current Ie at AC-3, 400 V: 11.5 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
026982
Model Code
T0-1-15109/E
EAN
4015080269823
Product Length/Depth
76 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60204
UL 60947-4-1
VDE 0660
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947
UL
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
