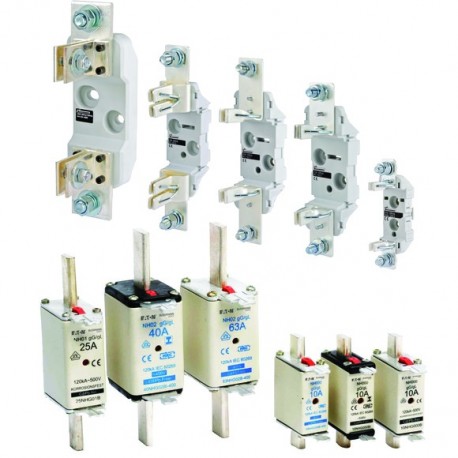

EATON - MOELLER CERAMIC BASE NH00 CERAMIC BASE NH00 TBS00-D EATON ELECTRIC Fuse-base, low voltage, 160 A, AC 690 V, NH00, gL/gG, 1P, IEC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CERAMIC BASE NH00 TBS00-D EATON ELECTRIC Fuse-base, low voltage, 160 A, AC 690 V, NH00, gL/gG, 1P, IEC

CERAMIC BASE NH00

TBS00D

EATON - MOELLER

1 Pcs.

Fuse-base, low voltage, 160 A, AC 690 V, NH00, gL/gG, 1P, IEC Fuse base, BT, 160 A, AC 690 V, NH00, gL/gG, 1F, IEC Fuse accessory, Fuse-base, low voltage, 160 A, AC 690 V, NH00, gL/gG, 1P, IEC, DIN rail and/or size 4 screw mounting, IEC 60269-1, IP20, Ceramic

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller fuse-base, low voltage is an essential electrical component designed to securely mount industrial fuses within power distribution panels and control cabinets, ensuring safe circuit interruption during fault conditions. This Eaton Moeller CERAMIC BASE NH00 unit supports standard panel integration.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction size (EF002566): NH00
  • Mounting method (EF000003): Screw-on
  • Number of poles (EF001391): 1
  • Rated current (EF000227): 160 A
  • Bus-mounting type (EF002573): No
  • Swivelling mechanism (EF002574): Yes
  • With extra contact (EF020645): No
  • Halogen free (EF000025): No

More info

▲
Fuse-base, low voltage, 160 A, AC 690 V, NH00, gL/gG, 1P, IEC
Fuse accessory, Fuse-base, low voltage, 160 A, AC 690 V, NH00, gL/gG, 1P, IEC, DIN rail and/or size 4 screw mounting, IEC 60269-1, IP20, Ceramic
[

Delivery program

Product range
Fuse accessory
Basic function
Fuse-base
Field of application
low voltage
Rated current [I]
160 A
Rated voltage
AC 690 V
Construction size
NH00
Utilization category
gL/gG
Description
DIN rail and/or size 4 screw mounting
Protection
IP20
Number of poles
1P
Standard/Approval
IEC
Material
Ceramic
Standards/Regulations
IEC 60269-1
,

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
NH00
Number of poles
1
Rated current
160 A
Bus-mounting type
No
Swivelling mechanism
Yes
]
