View larger
Images are for illustrative purposes only. Please refer to data sheet for details

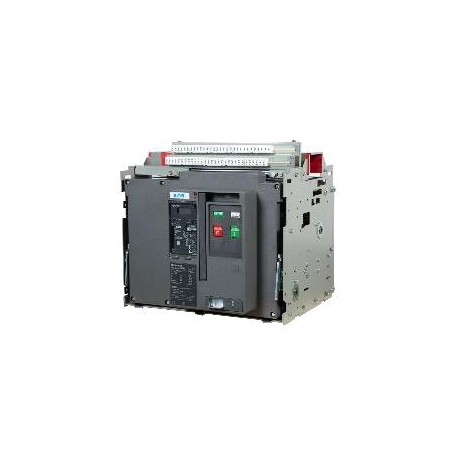

IZM-CS4MB 122880 Y7-122880 EATON ELECTRIC Cell switch contacts, 4C/O, complete
IZM-CS4MB
122880
Y7-122880
EATON - MOELLER
1 Pcs.
Cell switch contacts, 4C/O, complete
IZM-CS4MB
Signaling Contact, Position, 4W, Full
Auxiliary switch, Position signalling switches, For use with: IZM20, 32, 40, 63…W, IN20, 32, 40, 63…W
Automation > Auxiliary contact block
Circuit Breakers IZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cell switch contacts, 4C/O, complete
Eaton Catalog No.
2C13793G05
Auxiliary switch, Position signalling switches, For use with: IZM20, 32, 40, 63…W, IN20, 32, 40, 63…W
Delivery program
Accessories
Withdrawable units
Accessories
Position signalling switches
4 changeover contacts:
Card with mounting plate
Card with mounting plate
For use with
IZM20, 32, 40, 63…W
IN20, 32, 40, 63…W
IN20, 32, 40, 63…W
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | |
| Number of contacts as normally open contact (EF008256) | |
| Number of contacts as normally closed contact (EF008255) | |
| Number of fault-signal switches (EF007613) | |
| Rated operation current Ie at AC-15, 230 V (EF001385) | None A |
| Type of electric connection (EF003961) | |
| Model (EF000010) | |
| Mounting method (EF000003) | |
| Lamp holder (EF000048) |
