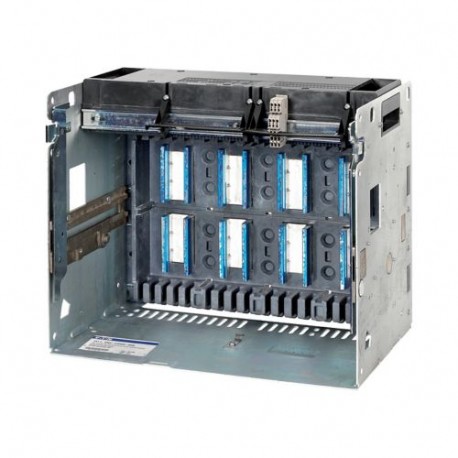

EATON - MOELLER +IZMX-CAS404-4000 +IZMX-CAS404-4000 122900 0004357793 EATON ELECTRIC removable device (chassis) 4000A, IZM404 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-CAS404-4000 122900 0004357793 EATON ELECTRIC removable device (chassis) 4000A, IZM404

+IZMX-CAS404-4000

122900

0004357793

EATON - MOELLER

1 Pcs.

removable device (chassis) 4000A, IZM404 Cassettes for the IZMX circuit-breakers' and INX switch-disconnector withdrawable units, with safety coding for basic device, with arcing chamber cover, control circuit terminal according to ordered options

Automation > Chassis part power circuit breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller +IZMX-CAS404-4000 removable chassis provides a robust drawout mechanism that houses heavy-duty air circuit breakers within high-amperage switchgear assemblies. It allows operators to safely rack protective devices into working positions while maintaining total galvanic isolation during servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current In (EF008250): 4000 A
  • Number of poles (EF001391): 4
  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Rail connection

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX cassette
Catalog Number
122900
Model Code
+IZMX-CAS404-4000
EAN
4015081205059
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
32.3 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Withdrawable units
Number of poles
Four-pole
Amperage Rating
4000 A
Nominal current
4000 A

Technical data - electrical

Electrical connection type of main circuit
Rail connection

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Features
Version as built-in device
Special features
Used with
INX40…4-…W
Four-pole
IZMX40…4-…W
