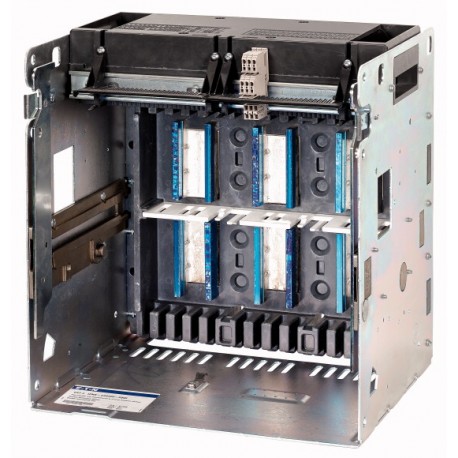

EATON - MOELLER +IZMX-CAS403-4000 +IZMX-CAS403-4000 122886 0004357787 EATON ELECTRIC removable device (chassis) 4000A, IZM403 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-CAS403-4000 122886 0004357787 EATON ELECTRIC removable device (chassis) 4000A, IZM403

+IZMX-CAS403-4000

122886

0004357787

EATON - MOELLER

1 Pcs.

removable device (chassis) 4000A, IZM403 Cassettes for the IZMX circuit-breakers' and INX switch-disconnector withdrawable units, with safety coding for basic device, with arcing chamber cover, control circuit terminal according to ordered options

Automation > Chassis part power circuit breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller +IZMX-CAS403-4000 122886 0004357787 EATON ELECTRIC removable device (chassis) 4000A, IZM403 is a heavy-duty mounting cradle engineered to support large withdrawable air circuit breakers in high-capacity electrical distribution architectures. Enclosure chassis systems provide a secure mechanical framework that facilitates smooth racking operations and reliable primary circuit connections. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current In (EF008250): 4000 A
  • Number of poles (EF001391): 3
  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Rail connection

More info

▲
Cassette 4000A, IZMX403
EL-Nummer (Norway)
0004357787
Cassettes for the IZMX circuit-breakers' and INX switch-disconnector withdrawable units, with safety coding for basic device, with arcing chamber cover, control circuit terminal according to ordered options
[

Delivery program

Product range
Accessories
Accessories
Withdrawable units
Accessories
Cassettes
Equipment supplied: arcing chamber cover, coding to basic device
Rated current [In]
4000 A
Pole
3
For use with
IZMX40…3-…W
INX40…3-…W
Instructions
With control circuit terminals according to ordered options.
Information about equipment supplied
with arcing chamber cover
Notes

With control circuit terminals according to the ordered options.

,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Chassis part power circuit breaker (EC002043)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Chassis part circuit breaker ([email protected] [ACN955011])
Rated current In
4000 A
Number of poles
3
Version as busbar adapter
No
Version as built-in device
Yes
Type of electrical connection of main circuit
Rail connection
]
