View larger
Images are for illustrative purposes only. Please refer to data sheet for details
+IZMX-CAS404-2000 150086 RESC103WSW0NMNN2MNDX EATON ELECTRIC 150086 +IZMX-CAS404-2000
+IZMX-CAS404-2000
150086
RESC103WSW0NMNN2MNDX
EATON - MOELLER
1 Pcs.
150086 +IZMX-CAS404-2000

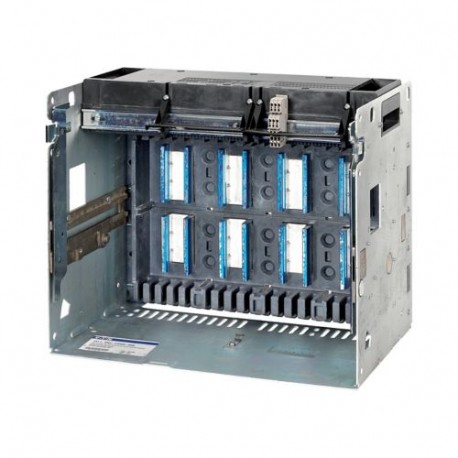

Cassettes for the IZMX circuit-breakers' and INX switch-disconnector withdrawable units, with safety coding for basic device, with arcing chamber cover, control circuit terminal according to ordered options
Automation > Chassis part power circuit breaker
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series IZMX/INX cassette
Catalog Number
150086
Model Code
+IZMX-CAS404-2000
EAN
4015081460687
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
32.3 kg
Compliances
RoHS conform
Delivery program
Type
Accessory
Accessory/spare part type
Withdrawable units
Number of poles
Four-pole
Amperage Rating
2000 A
Nominal current
2000 A
Technical data - electrical
Electrical connection type of main circuit
Rail connection
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Features
Version as built-in device
Special features
Used with
INX40…4-…W
Four-pole
IZMX40…4-…W
Four-pole
IZMX40…4-…W
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 2000 A |
| Number of poles (EF001391) | 4 |
| Version as busbar adapter (EF006965) | No |
| Version as built-in device (EF006954) | Yes |
| Type of electrical connection of main circuit (EF006819) | Rail connection |
