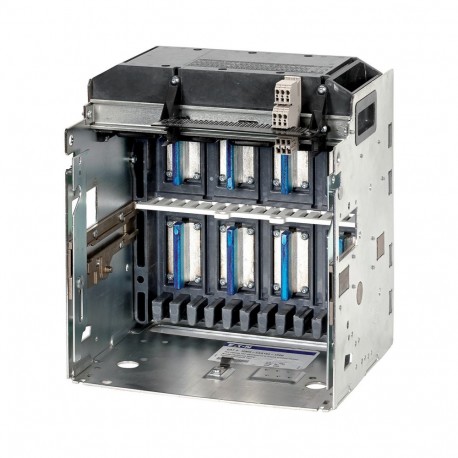

101538 +IZMX-CAS164-1600 Cassettes for the IZMX circuit-breakers' and INX switch-disconnector withdrawable units, with safety coding for basic device, with arcing chamber cover, control circuit terminal according to ordered options

Automation > Chassis part power circuit breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The +IZMX-CAS164-1600 101538 EATON ELECTRIC 101538 +IZMX-CAS164-1600 operates as a cassette or chassis base designed to accommodate withdrawable air circuit breakers within complex electrical switchboards. It provides a secure structural housing and reliable main circuit interfaces for four-pole high-amperage power protection systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current In (EF008250): 1600 A
  • Number of poles (EF001391): 4
  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): Yes
  • Type of electrical connection of main circuit (EF006819): Rail connection

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX cassette
Catalog Number
101538
Model Code
+IZMX-CAS164-1600
EAN
4015081014309
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
18.7 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Withdrawable units
Number of poles
Four-pole
Amperage Rating
1600 A
Nominal current
1600 A

Technical data - electrical

Electrical connection type of main circuit
Rail connection

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Features
Version as built-in device
Special features
Used with
IZMX16…4-…W
INX16…4-…W
Four-pole

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
