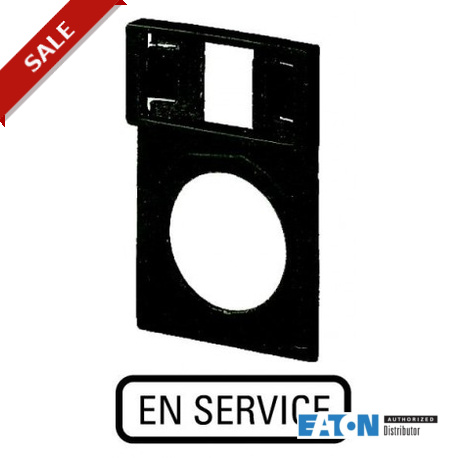

Q25TS-383 046204 EATON ELECTRIC Carrier, + label, IN SERVICE
Q25TS-383
046204
EATON - MOELLER
1 Pcs.
Automation > Text plate for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A carrier with label, supplied by Eaton Moeller under part number Q25TS-383, provides a complete mounting and text solution for industrial command and signaling units. Carrier assemblies simplify the installation of customized legends onto pushbuttons and control switches in automated manufacturing plants. Final pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated operational current for specified heat dissipation: I n
- Heat dissipation per pole, current-dependent: P vid
- Equipment heat dissipation, current-dependent: P vid
- Static heat dissipation, non-current-dependent: P vs
- Heat dissipation capacity: P diss
- IL04716016Z (AWA1160-1429) Mounting of components: >>
- Colour (EF000007): Black
- Shape (EF000051): Rectangular
- Width (EF000008): 25 mm
- Height (EF000040): 38 mm
- Outer diameter (EF000015): 0 mm
More info
▲Product range | RMQ16 (drilling dimensions 16 mm) | ||
Basic function | Accessories | ||
Basic function accessories | Label mount with insert label | ||
Single unit/Complete unit | Single unit | ||
Inscription | EN SERVICE | ||
Colour, symbol | |||
Technical data for design verification | |||
Rated operational current for specified heat dissipation | In | A | 0 |
Heat dissipation per pole, current-dependent | Pvid | W | 0 |
Equipment heat dissipation, current-dependent | Pvid | W | 0 |
Static heat dissipation, non-current-dependent | Pvs | W | 0 |
Heat dissipation capacity | Pdiss | W | 0 |
Operating ambient temperature min. | °C | -25 | |
Operating ambient temperature max. | °C | 60 | |
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire | ||
10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
10.10 Temperature rise | Not applicable. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Low-voltage industrial components (EG000017) / Text plate for control circuit devices (EC000624) | |||
| Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Identification plate for command devices ([email protected] [AKF043011]) | |||
Imprint | - | ||
Imprint ISO symbols | - | ||
Colour | Black | ||
Shape | Rectangular | ||
Width | mm | 25 | |
Height | mm | 38 | |
Outer diameter | mm | 0 | |
