View larger
Images are for illustrative purposes only. Please refer to data sheet for details

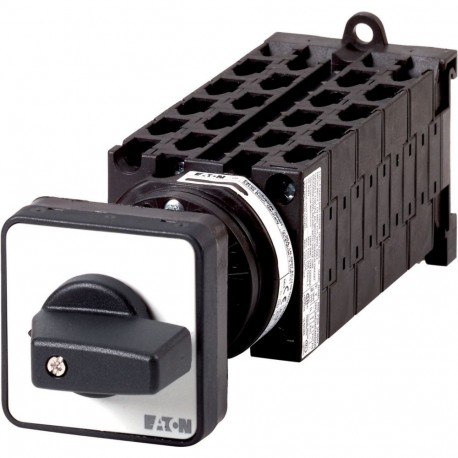

T0-10-SOND*/Z 907848 Y7-907848 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 10 contact unit(..
T0-10-SOND*/Z
907848
Y7-907848
EATON - MOELLER
10 Pcs.
Non-standard switch, T0, 20 A, rear mounting, 10 contact unit(s)
T0-10-SOND*/Z
Eaton Moeller® series T0 Non-standard switch, T0, 20 A, rear mounting, 10 contact unit(s)
Non-standard switch, Product range: Non-standard switch, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, 10 contact unit(s), Rated uninterrupted current: Iu= 20 A
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907848
Model Code
T0-10-SOND*/Z
Product Length/Depth
204 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.257 kg
Certifications
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 20 A |
| Number of switch positions (EF000231) | 0 |
| With zero (off) position (EF001416) | No |
| With retraction in 0-position (EF002428) | No |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | Yes |
| Suitable for front mounting (EF007246) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 48x48 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
