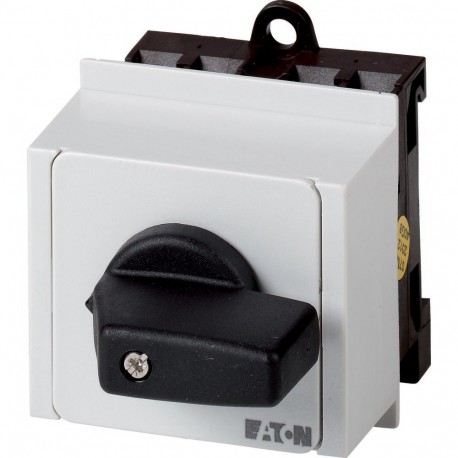

EATON - MOELLER T0-4-SOND*/IVS T0-4-SOND*/IVS 907809 Y7-907809 EATON ELECTRIC Non-standard switch, T0, 20 A, service distribution board mou.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-SOND*/IVS 907809 Y7-907809 EATON ELECTRIC Non-standard switch, T0, 20 A, service distribution board mou..

T0-4-SOND*/IVS

907809

Y7-907809

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, service distribution board mounting, 4 contact unit(s) T0-4-SOND*/IVS Eaton Moeller® series T0 Non-standard switch, T0, 20 A, service distribution board mounting, 4 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Notes: customized version according to form, Degree of Protection: Front IP30, Design: service distribution board mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-4-SOND*/IVS 907809 Y7-907809 EATON ELECTRIC Non-standard switch is a customizable rotary cam switch engineered for tailored control schemes in distribution boards. Such versatile switching elements accommodate specialized wiring configurations and operational sequences within industrial automation setups.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907809
Model Code
T0-4-SOND*/IVS
Product Length/Depth
11 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.179 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
