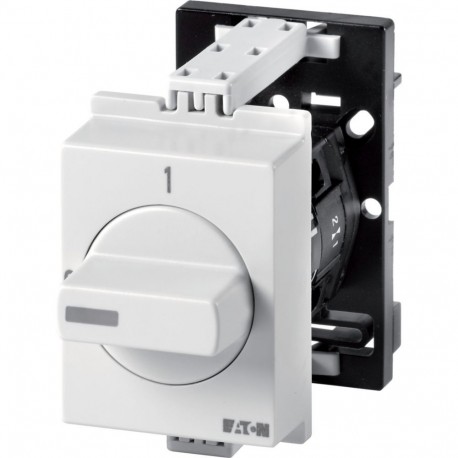

EATON - MOELLER TM-1-SOND*/IVS TM-1-SOND*/IVS 225346 Y7-225346 EATON ELECTRIC Non-standard switch, TM, 10 A, service distribution board mou.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-SOND*/IVS 225346 Y7-225346 EATON ELECTRIC Non-standard switch, TM, 10 A, service distribution board mou..

TM-1-SOND*/IVS

225346

Y7-225346

EATON - MOELLER

10 Pcs.

Non-standard switch, TM, 10 A, service distribution board mounting, 1 contact unit(s) TM-1-SOND*/IVS Eaton Moeller® series TM Non-standard switch, TM, 10 A, service distribution board mounting, 1 contact unit(s) Non-standard switch, Product range: Non-standard switch, Standards: IEC/EN 60947, VDE 0660, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, customized version according to form, mini rotary switch TM, SOND reorder, Degree of Protection: Front IP30, Design: service distribution board mounting, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-1-SOND*/IVS non-standard switch is a built-in modular component designed for service distribution boards to execute specialized manual switching tasks within electrical installations. Technicians utilize these custom control devices to manage auxiliary circuits and unique routing configurations in automation systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 0
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Non-standard switch
Catalog Number
225346
Model Code
TM-1-SOND*/IVS
Product Length/Depth
65 mm
Product Height
60 mm
Product Width
35.5 mm
Product Weight
0.04 kg
Certifications
IEC/EN 60947-5-1
IEC/EN 60947
VDE 0660
