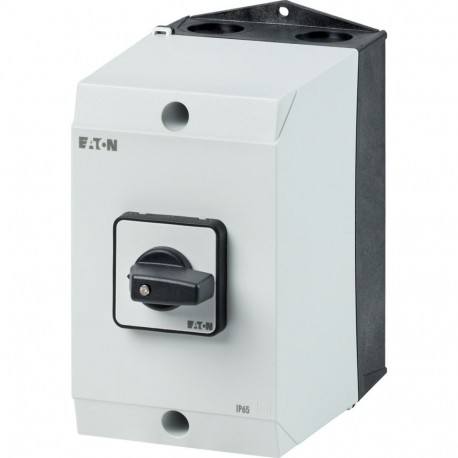

EATON - MOELLER T3-5-SOND*/I2 T3-5-SOND*/I2 207504 Y7-207504 EATON ELECTRIC Non-standard switch, T3, 32 A, surface mounting, 5 contact uni.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-SOND*/I2 207504 Y7-207504 EATON ELECTRIC Non-standard switch, T3, 32 A, surface mounting, 5 contact uni..

T3-5-SOND*/I2

207504

Y7-207504

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, surface mounting, 5 contact unit(s) T3-5-SOND*/I2 Eaton Moeller® series T3 Non-standard switch, T3, 32 A, surface mounting, 5 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T3-5-SOND*/I2 207504 Y7-207504 EATON ELECTRIC Non-standard switch, T3, 32 A, surface mounting, 5 contact uni.. is a robust rotary switch designed for manual control of electrical circuits and motor loads. Enclosed switching devices of this type are routinely installed on machine panels and control cabinets to safely route power or initiate local disconnect sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
207504
Model Code
T3-5-SOND*/I2
Product Length/Depth
181 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.634 kg
Certifications
IEC/EN 60947
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
