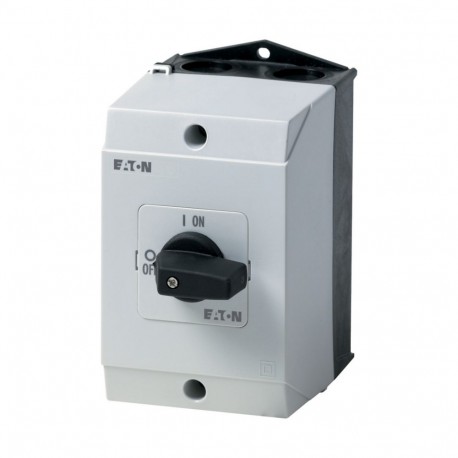

EATON - MOELLER T3-4-SOND*/I2 T3-4-SOND*/I2 207501 Y7-207501 EATON ELECTRIC Non-standard switch, T3, 32 A, surface mounting, 4 contact uni.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-SOND*/I2 207501 Y7-207501 EATON ELECTRIC Non-standard switch, T3, 32 A, surface mounting, 4 contact uni..

T3-4-SOND*/I2

207501

Y7-207501

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, surface mounting, 4 contact unit(s) T3-4-SOND*/I2 Eaton Moeller® series T3 Non-standard switch, T3, 32 A, surface mounting, 4 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-4-SOND*/I2 is a specialized switch unit designed for custom electrical routing and non-standard switching requirements within industrial environments. Engineers integrate these components when standard multi-pole configurations require unique contact arrangements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 0

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
207501
Model Code
T3-4-SOND*/I2
Product Length/Depth
181 mm
Product Height
127 mm
Product Width
100 mm
Product Weight
0.594 kg
Certifications
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
