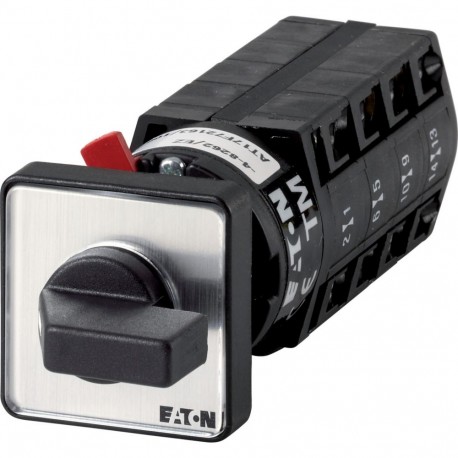

TM-4-SOND*/EZ 907758 Y7-907758 EATON ELECTRIC Non-standard switch, TM, 10 A, centre mounting, 4 contact unit..
TM-4-SOND*/EZ
907758
Y7-907758
EATON - MOELLER
10 Pcs.
Non-standard switch, TM, 10 A, centre mounting, 4 contact unit(s)
TM-4-SOND*/EZ
Eaton Moeller® series TM Non-standard switch, TM, 10 A, centre mounting, 4 contact unit(s)
Non-standard switch, Product range: Non-standard switch, Standards: IEC/EN 60947, VDE 0660, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, customized version according to form, mini rotary switch TM, SOND reorder, Degree of Protection: Front IP65, Design: center mounting, 4 contact unit(s), Rated uninterrupted current: Iu= 10 A
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series TM Non-standard switch
Catalog Number
907758
Model Code
TM-4-SOND*/EZ
Product Length/Depth
110 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.063 kg
Certifications
VDE 0660
IEC/EN 60947
IEC/EN 60947-5-1
IEC/EN 60947
IEC/EN 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 500 V |
| Rated permanent current Iu (EF001389) | 10 A |
| Number of switch positions (EF000231) | 0 |
| With zero (off) position (EF001416) | No |
| With retraction in 0-position (EF002428) | No |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 30x30 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
