View larger
Images are for illustrative purposes only. Please refer to data sheet for details

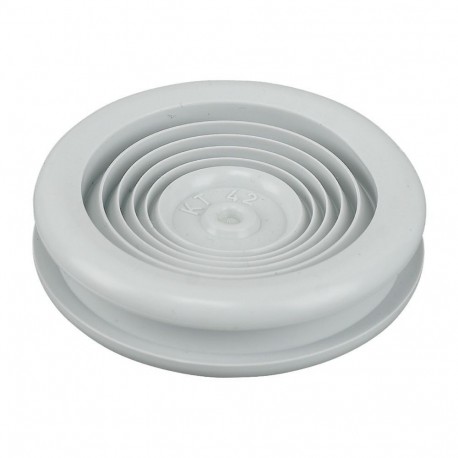

KT16 022031 Y7-22031 EATON ELECTRIC Cable grommet, PG16, IP65 x
KT16
022031
Y7-22031
EATON - MOELLER
100 Pcs.
Cable grommet, PG16, IP65_x
Cable sleeve; PG16; IP65_x
Eaton xEffect Accessories LV systems Accessories and replacement parts for LV switchgear. Cable grommet, PG16, IP65
Cable grommets, can be used for wall thickness 2-8mm, soft PVC, cadmium- and lead-free, cable entry PG 16, drilling dimensions = 23.5mm, outer cable diameter=7-17mm, utilization cable NYM/NYY, 4-wire=1.5-10mm², similar RAL 7035
Cables > Cable entry sleeve
Insulating Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEffect Accessories cable grommet PG
Catalog Number
022031
Model Code
KT16
EAN
4015080220312
Product Length/Depth
15 mm
Product Height
25 mm
Product Width
25 mm
Product Weight
0.004 kg
Compliances
RoHS conform
Product specifications
Type
General switchboard accessory
Features
Gastight
Watertight
Watertight
Thread size
0
Bore diameter
23.5 mm
For outer cable diameter - max
17 mm
For outer cable diameter - min
7 mm
For wall thickness - max
8 mm
For wall thickness - min
2 mm
Number of cables - max
1
Number of cables - min
1
Opening diameter
23.5 mm
Operating temperature - max
40 °C
Operating temperature - min
-5 °C
Suitable for cable diameter - max
17 mm
Suitable for cable diameter - min
7 mm
Thread size (PG)
16
Cable entry type
PG 16
Round
Round
Surface finishing
Similar RAL 7035
Used with
NYM/NYY 4 core, 1.5 mm² - 10 mm²
For wall thickness 2 - 8 mm
For wall thickness 2 - 8 mm
Color
Gray
Degree of protection
IP65
Surface protection
Other
Accessory/spare part type
Cable management
Cable grommets
Cable grommets
Material quality
Polyvinyl chloride (PVC)
Material
Cadmium- and lead-free
Soft PVC
Plastic
Soft PVC
Plastic
Model
Closed
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Closed |
| Suitable for cable gland (EF010872) | No |
| Cable entry (EF000537) | Round |
| Number of cables (EF010811) | 1 |
| Suitable for cable diameter (EF005466) | 7 mm |
| Bore diameter (EF007703) | 23.5 mm |
| For wall thickness (EF007789) | 2 mm |
| Thread size (metric) (EF003563) | 0 |
| Thread size PG (EF007837) | 16 |
| Total length (EF000369) | 15 mm |
| With strain relief (EF000878) | No |
| Shrink technique (EF009919) | No |
| Angle model (EF005433) | No |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Colour (EF000007) | Grey |
| Gastight (EF020030) | Yes |
| Fire resistant (EF025535) | No |
| Watertight (EF000017) | Yes |
| Degree of protection (IP) (EF005474) | IP65 |
| Operating temperature (EF001742) | -5 °C |
