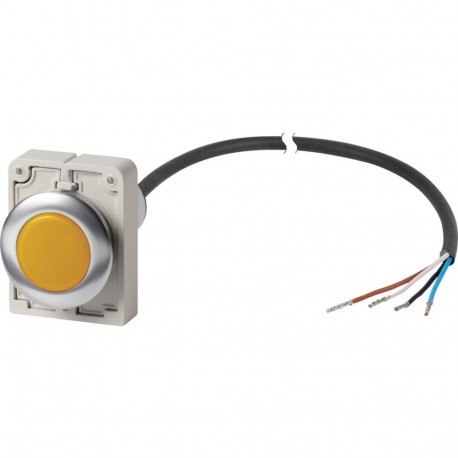

EATON - MOELLER C30C-FL-Y-24-P65 C30C-FL-Y-24-P65 186071 Y7-186071 EATON ELECTRIC C30C-FL-Y-24-P65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C30C-FL-Y-24-P65 186071 Y7-186071 EATON ELECTRIC C30C-FL-Y-24-P65

C30C-FL-Y-24-P65

186071

Y7-186071

EATON - MOELLER

1 Pcs.

C30C-FL-Y-24-P65 Eaton Moeller® series C30 Indicator light, Flat, Cable (black) with non-terminated end, 4 pole, 3.5 m, Lens yellow, LED white, 24 V AC/DC Indicator light, Product range: RMQ compact solution, Complete unit, Design: Flat, Connection type: Cable (black) with non-terminated end, 4 pole, Cable Length: 3.5 m, Color Lens: yellow, Color LED: white, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Indicator light complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number C30C-FL-Y-24-P65 is an indicator light utilized in industrial automation environments to provide clear visual status information on operator terminals. These signal lamps help keep plant personnel informed about equipment operational phases and safety conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of indicator lights (EF001965): 1
  • Colour lens (EF000207): Yellow
  • Type of lamp socket (EF008229): LED
  • With light source (EF005905): Yes
  • Rated operating voltage Ue (EF002418): 24 V
  • Voltage type (EF000187): AC/DC
  • Construction type lens (EF006253): Round
  • Type of lens (EF008343): Flat
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome

More info

▲

General specifications

Product Name
Eaton Moeller® series C30 Indicator light
Catalog Number
186071
Model Code
C30C-FL-Y-24-P65
EAN
4015081815722
Product Length/Depth
1060 mm
Product Height
46 mm
Product Width
36 mm
Product Weight
0.137 kg
Certifications
VDE 0660
IEC/EN 60947-5-1

Features & Functions

Bezel color
Chrome
Bezel material
Metal
Design
Cable end open
Flat
Electric connection type
Other
Fitted with:
Front ring
Light source
Lens color
Yellow
Light color
White

General

Cable length
3.5 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with non-terminated end, 4 pole
Degree of protection
IP Other
NEMA Other
Mounting position
As required
Opening diameter
30 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
2 Nm, Threaded ring
Type
Indicator lights
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
30 V
Rated operational voltage
24 V AC/DC (LED)
Rated operational voltage (Ue) - min
24 V
Rated operational voltage (Ue) - max
24 V
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts

Actuator

Actuator diameter
4.7 mm
