C30C-FL-W-24-P65 186072 Y7-186072 EATON ELECTRIC C30C-FL-W-24-P65
C30C-FL-W-24-P65
186072
Y7-186072
EATON - MOELLER
1 Pcs.
Automation > Indicator light complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

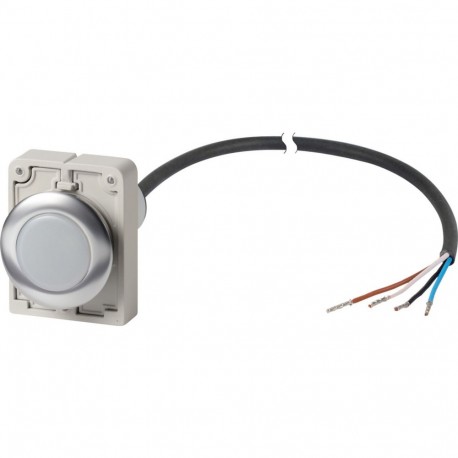

An Eaton Moeller indicator light provides essential visual annunciation on automation cabinets and industrial operator consoles. The C30C-FL-W-24-P65 unit integrates a white flat LED lens within a sturdy chrome-plated metal front ring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of indicator lights (EF001965): 1
- Colour lens (EF000207): White
- Type of lamp socket (EF008229): LED
- With light source (EF005905): Yes
- Rated operating voltage Ue (EF002418): 24 V
- Voltage type (EF000187): AC/DC
- Construction type lens (EF006253): Round
- Type of lens (EF008343): Flat
- Hole diameter (EF000079): 30 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Chrome
More info
▲General specifications
VDE 0660
Features & Functions
Cable end open
Front ring
General
NEMA Other
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
