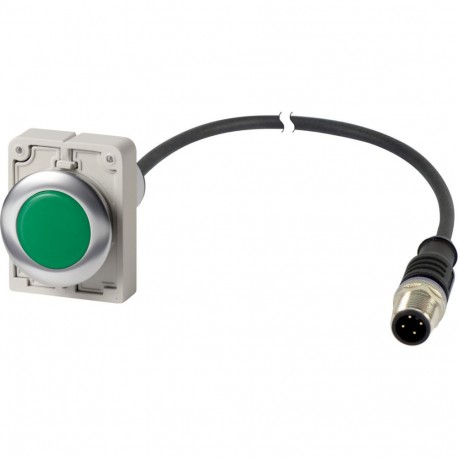

EATON - MOELLER C30C-FL-G-24-P5 C30C-FL-G-24-P5 186012 Y7-186012 EATON ELECTRIC C30C-FL-G-24-P5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C30C-FL-G-24-P5 186012 Y7-186012 EATON ELECTRIC C30C-FL-G-24-P5

C30C-FL-G-24-P5

186012

Y7-186012

EATON - MOELLER

1 Pcs.

C30C-FL-G-24-P5 Eaton Moeller® series C30 Indicator light, Flat, Cable (black) with M12A plug, 4 pole, 1 m, Lens green, LED green, 24 V AC/DC Indicator light, Product range: RMQ compact solution, Complete unit, Design: Flat, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 1 m, Color Lens: green, Color LED: green, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Indicator light complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

C30C-FL-G-24-P5 186012 Y7-186012 EATON ELECTRIC C30C-FL-G-24-P5 is a panel-mounted status light engineered to deliver clear optical feedback regarding machinery operation, system modes, or safety states. Industrial engineers integrate indicator lights into control panels and distribution boards to ensure clear communication with operators on the factory floor. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of indicator lights (EF001965): 1
  • Colour lens (EF000207): Green
  • Type of lamp socket (EF008229): LED
  • With light source (EF005905): Yes
  • Rated operating voltage Ue (EF002418): 24 V
  • Voltage type (EF000187): AC/DC
  • Construction type lens (EF006253): Round
  • Type of lens (EF008343): Flat
  • Hole diameter (EF000079): 30 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Metal
  • Colour front ring (EF002429): Chrome

More info

▲

General specifications

Product Name
Eaton Moeller® series C30 Indicator light
Catalog Number
186012
Model Code
C30C-FL-G-24-P5
EAN
4015081815135
Product Length/Depth
1060 mm
Product Height
46 mm
Product Width
36 mm
Product Weight
0.074 kg
Certifications
VDE 0660
IEC/EN 60947-5-1

Features & Functions

Bezel color
Chrome
Bezel material
Metal
Design
M12A
Flat
Electric connection type
Other
Fitted with:
Light source
Front ring
Lens color
Green
Light color
Green

General

Cable length
1 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with M12A plug, 4 pole
Degree of protection
IP Other
NEMA Other
Mounting position
As required
Opening diameter
30 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
2 Nm, Threaded ring
1 Nm, Plug
Type
Indicator lights
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
30 V
Rated operational voltage
24 V AC/DC (LED)
Rated operational voltage (Ue) - min
24 V
Rated operational voltage (Ue) - max
24 V
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts

Actuator

Actuator diameter
4.7 mm
