C30C-FDL-W-K10-24-P5 186003 Y7-186003 EATON ELECTRIC C30C-FDL-W-K10-24-P5
C30C-FDL-W-K10-24-P5
C30C-FDL-W-K10-24-P5
Y7-186003
EATON - MOELLER
1 unit
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

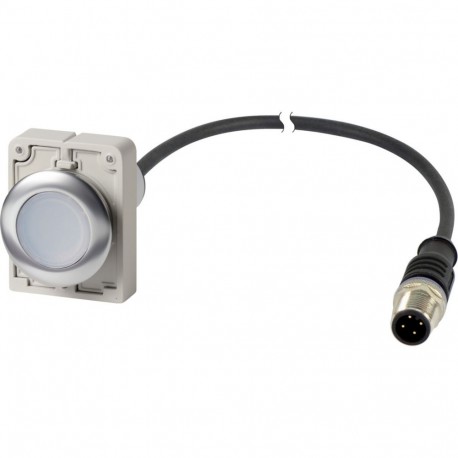

This Eaton Moeller C30C-FDL-W-K10-24-P5 is an illuminated flat pushbutton designed for industrial control panels and operator consoles. Pushbuttons of this type are routinely integrated into electrical enclosures to allow operators to manually issue start, stop, or mode-switching commands within automated processing systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions: 1
- Type of button: Flat
- Colour button: White
- Transparent: No
- Construction type lens: Round
- Hole diameter: 30.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Suitable for lighting: Yes
- Switching function latching: No
- Spring-return: Yes
- Supply voltage lamp: 24 V
- Number of contacts as normally open contact: 1
- Number of contacts as normally closed contact: 0
- Number of contacts as change-over contact: 0
- With front ring: Yes
More info
▲General specifications
IEC/EN 60947-5-1
CSA Class No.: 321103
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA
Features & Functions
Flat
General
IP67/IP69K
1 Nm, Plug
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Momentary
