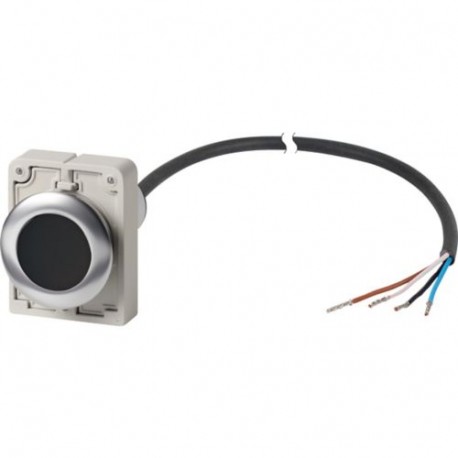

C30C-FD-S-K01-P65 185958 Y7-185958 EATON ELECTRIC C30C-FD-S-K01-P65
C30C-FD-S-K01-P65
185958
Y7-185958
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller C30C-FD-S-K01-P65 pushbutton acts as a standard operator interface element in heavy-duty industrial machinery and control stations. Panel builders integrate such devices to facilitate reliable manual switching operations and process control management.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Black
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 30.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Cable
More info
▲General specifications
VDE 0660
CSA Class No.: 321103
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA
Features & Functions
Flat
General
IP67/IP69K
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Spring-return
