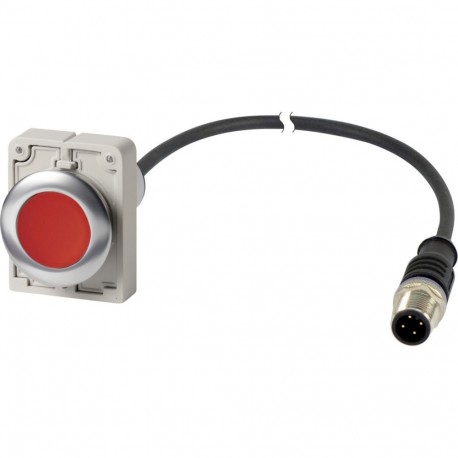

C30C-FD-R-K01-P5 185987 Y7-185987 EATON ELECTRIC C30C-FD-R-K01-P5
C30C-FD-R-K01-P5
185987
Y7-185987
EATON - MOELLER
1 Pcs.
C30C-FD-R-K01-P5
Pushbutton, Flat, momentary, 1 NC, Cable (black) with M12A plug, 4 pole, 1 m, red, Blank, Metal bezel
Pushbutton, RMQ compact solution, Complete unit, Design: Flat, momentary, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 1 m, button plate: red, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Metal bezel, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Pushbutton, Flat, momentary, 1 NC, Cable (black) with M12A plug, 4 pole, 1 m, red, Blank, Metal bezel
Pushbutton, RMQ compact solution, Complete unit, Design: Flat, momentary, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 1 m, button plate: red, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Metal bezel, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
General specifications
Product name
Eaton Moeller® series C30 Pushbutton
Part no.
C30C-FD-R-K01-P5
EAN
4015081814886
Product Length/Depth
1060 millimetre
Product height
46 millimetre
Product width
36 millimetre
Product weight
0.076 kilogram
Certifications
IEC/EN 60947-5-1
VDE 0660
CE marking
UL File No.: E29184
UL Category Control No.: NKCR
CSA Class No.: 321103
CSA-C22.2 No. 14-18 and No. 94.2-15
CSA File No.: 165628
UL 508
CSA
UL
VDE 0660
CE marking
UL File No.: E29184
UL Category Control No.: NKCR
CSA Class No.: 321103
CSA-C22.2 No. 14-18 and No. 94.2-15
CSA File No.: 165628
UL 508
CSA
UL
Product Tradename
C30
Product Type
Pushbutton
Product Sub Type
None
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1
Features & Functions
Bezel color
Chrome
Bezel material
Metal
Design
Flat
M12A
M12A
Electric connection type
Other
Features
Positive opening
Fitted with:
Front ring
Inscription
Blank
General information
Cable length
1 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with M12A plug, 4 pole
Degree of protection
NEMA Other
IP67/IP69K
IP67/IP69K
Mounting position
As required
Opening diameter
30.5 mm
Operating frequency
3600 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
1 Nm, Plug
2 Nm, Threaded ring
2 Nm, Threaded ring
Type
Pushbutton actuator
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
30 V
Rated operational current (Ie) at AC-15, 24 V
4 A
Rated operational current (Ie) at DC-13, 24 V
3 A
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts
Actuator
Actuating force
5 N
Actuator color
Red
Actuator diameter
29.7 mm
Actuator function
Spring-return
Momentary
Momentary
Actuator travel and actuation force (DIN EN 60947-5-1)
4.65 mm
Knob travel
5.7 mm
Contacts
Control circuit reliability
1 failure per 900,000 switching operations statistically determined, at 17 V DC/7 mA: N/C contact)
Force for positive opening - min
15 N
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
0
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Push button, complete (EC001028)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Push-button actuator, complete unit (ecl@ss13-27-37-12-28 [AKF046019])
Number of command positions
1
Type of button
Flat
Colour button
Red
Transparent
No
Construction type lens
Round
Hole diameter
30.5 mm
Width opening
0 mm
Height opening
0 mm
Suitable for illumination
No
Switching function latching
No
Spring-return
Yes
Supply voltage lamp
0 V
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Type of electric connection
Other
With front ring
Yes
Material front ring
Metal
Colour front ring
Chrome
Degree of protection (IP)
IP67/IP69K
Degree of protection (NEMA)
Other
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Type of button (EF001546) | Flat |
| Colour button (EF000190) | Red |
| Transparent (EF006243) | No |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Suitable for lighting (EF001142) | No |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| Supply voltage lamp (EF006522) | 0 V |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of electric connection (EF003961) | Other |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | Other |
