C22-WS-MS1-K20 132800 EATON ELECTRIC C22-WS-MS1-K20
C22-WS-MS1-K20
132800
EATON - MOELLER
1 Pcs.
Automation > Selector switch, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

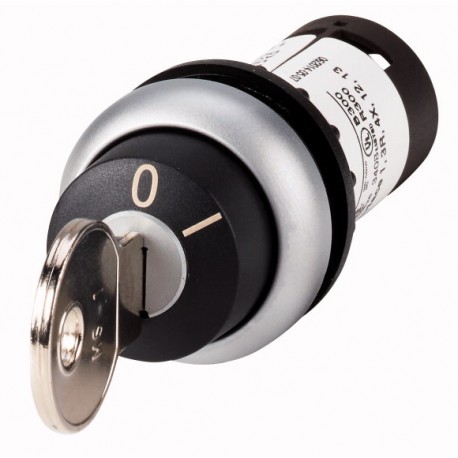

The C22-WS-MS1-K20 132800 EATON ELECTRIC C22-WS-MS1-K20 by Eaton Moeller functions as a secure control mechanism, allowing authorized personnel to change states or restrict access on sensitive industrial machinery. Key-operated switches are standard in safety circuits, secure control desks, and automated production lines where unauthorized operation must be strictly prevented.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions: 2
- Type of control element: Key
- Suitable for lighting: No
- With light source: No
- Colour button: Black
- Hole diameter: 22.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Switching function latching: No
- Spring-return: Yes
- Degree of protection (IP): IP66
- Degree of protection (NEMA): 3R
- Supply voltage: 0 V
- Number of contacts as normally open contact: 2
- Number of contacts as normally closed contact: 0
- Number of contacts as change-over contact: 0
More info
▲Delivery program
= spring-return]
40°Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
