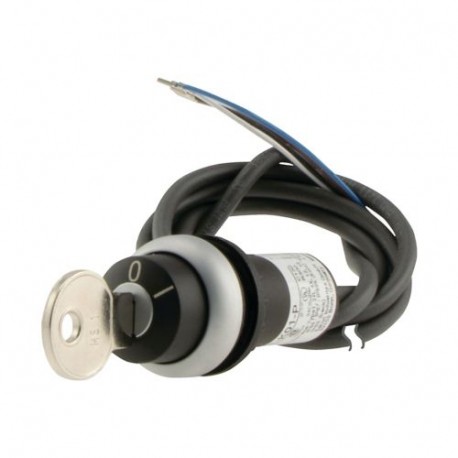

C22-WS-MS1-K11-P65 186271 Y7-186271 EATON ELECTRIC Key-operated push-button, classic, momentary, 2 positions..
C22-WS-MS1-K11-P65
186271
Y7-186271
EATON - MOELLER
1 Pcs.
Automation > Selector switch, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller C22-WS-MS1-K11-P65 is a key-operated push-button designed for secure control panel operations. Key-operated push-buttons are commonly installed on industrial machinery and control enclosures to restrict operational access to authorized personnel only, preventing accidental activation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- With light source (EF005905): No
- Colour button (EF000190): Black
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Degree of protection (IP) (EF005474): IP66
- Supply voltage (EF004127): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
VDE 0660
CE
UL
CSA
CSA File No.: 165628
CSA Class No.: 321103
UL File No.: E29184
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL listed, CSA certified
Features & Functions
Classical
General
IP65, rear
NEMA Other
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Spring-return
Key withdrawable in position 0
Contacts
1 failure per 17,000,000 swtching operations (statistically determined, at 17 V DC/7 mA: N/O contact
