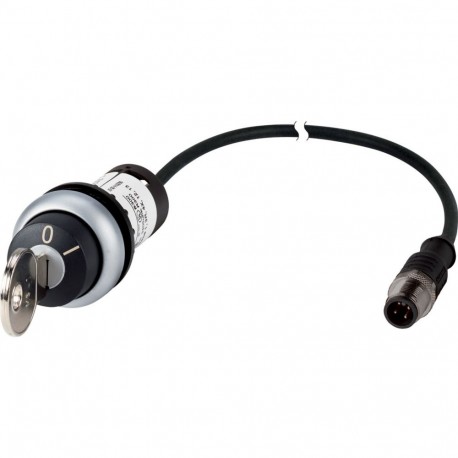

C22-WS-MS1-K10-P30 186226 EATON ELECTRIC Key-operated push-button, classic, momentary, 2 positions, MS1, 1 N..
C22-WS-MS1-K10-P30
186226
EATON - MOELLER
1 Pcs.
Automation > Selector switch, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The C22-WS-MS1-K10-P30 186226 EATON ELECTRIC Key-operated push-button, classic, momentary, 2 positions, MS1, 1 N.. manufactured by Eaton Moeller is a specialized control component designed to combine momentary actuation with key security. These push-buttons are installed on machine control panels to execute secure reset functions or trigger authorized testing protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- With light source (EF005905): No
- Colour button (EF000190): Black
- Hole diameter (EF000079): 22 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Degree of protection (IP) (EF005474): IP66
- Supply voltage (EF004127): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲Delivery program
= spring-return]
40°IP65 (on rear)
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
IP65 (on rear)
