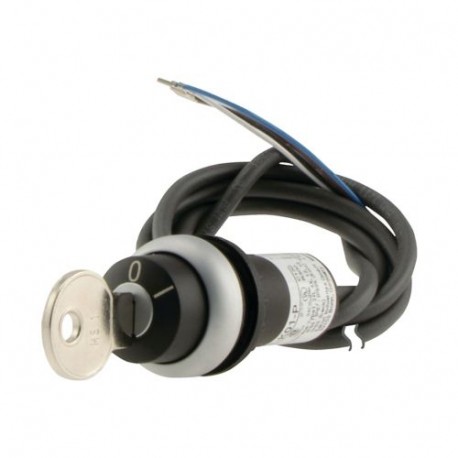

C22-WRS-MS1-K11-P62 186260 Y7-186260 EATON ELECTRIC Key-operated actuator, classic, maintained, 2 positions,..
C22-WRS-MS1-K11-P62
186260
Y7-186260
EATON - MOELLER
1 Pcs.
Automation > Selector switch, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller key-operated actuator ensures that only authorized personnel can alter critical control settings on automated industrial equipment. The robust latching mechanism securely maintains selected positions under high-vibration conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions: 2
- Type of control element: Key
- Suitable for lighting: No
- With light source: No
- Colour button: Black
- Hole diameter: 22.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Switching function latching: Yes
- Spring-return: No
- Degree of protection (IP): IP66
- Supply voltage: 0 V
- Number of contacts as normally open contact: 1
- Number of contacts as normally closed contact: 1
- Number of contacts as change-over contact: 0
- With front ring: Yes
More info
▲General specifications
CE
IEC/EN 60947-5-1
CSA
UL
CSA File No.: 165628
CSA Class No.: 321103
UL File No.: E29184
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL listed, CSA certified
Features & Functions
Classical
General
IP65, rear
NEMA Other
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Key withdrawable in position 0
Key withdrawable in position 1
Maintained
Contacts
1 failure per 900,000 switching operations statistically determined, at 17 V DC/7 mA: N/C contact)
