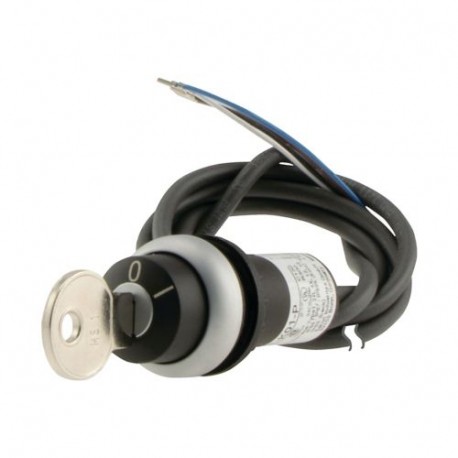

C22-WRS-MS1-K02-P65 186275 Y7-186275 EATON ELECTRIC Key-operated actuator, classic, maintained, 2 positions,..
C22-WRS-MS1-K02-P65
186275
Y7-186275
EATON - MOELLER
1 Pcs.
Automation > Selector switch, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller C22-WRS-MS1-K02-P65 key-operated actuator provides secure, maintained control for sensitive industrial processes requiring restricted access. Technicians integrate this locking switch into control consoles to ensure only authorized personnel can alter operational states.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- With light source (EF005905): No
- Colour button (EF000190): Black
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Degree of protection (IP) (EF005474): IP66
- Supply voltage (EF004127): 0 V
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 2
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
VDE 0660
UL
CSA
IEC/EN 60947-5-1
CSA File No.: 165628
CSA Class No.: 321103
UL File No.: E29184
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL listed, CSA certified
Features & Functions
Classical
General
IP65, rear
NEMA Other
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Maintained
Switching function latching
Key withdrawable in position 0
