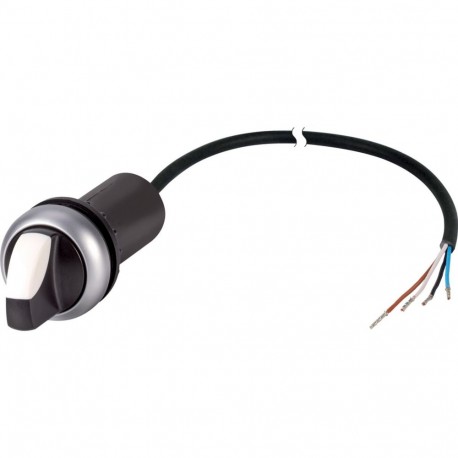

C22-WRK3-K11-P65 186188 Y7-186188 EATON ELECTRIC Changeover switch, classic, with thumb-grip, maintained, 3 ..
C22-WRK3-K11-P65
186188
Y7-186188
EATON - MOELLER
1 Pcs.
Automation > Selector switch, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A C22-WRK3-K11-P65 Eaton Moeller changeover switch offers maintained multi-position control for operator interface panels. Maintained toggle operators hold their selected state until physically switched again.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- With light source (EF005905): No
- Colour button (EF000190): Black
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Degree of protection (IP) (EF005474): IP66
- Supply voltage (EF004127): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
VDE 0660
CSA
IEC/EN 60947-5-1
UL
CSA File No.: 165628
CSA Class No.: 321103
UL File No.: E29184
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL listed, CSA certified
Features & Functions
With thumb-grip
Classical
General
IP65, rear
NEMA Other
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Switching function latching
Contacts
1 failure per 17,000,000 swtching operations (statistically determined, at 17 V DC/7 mA: N/O contact
