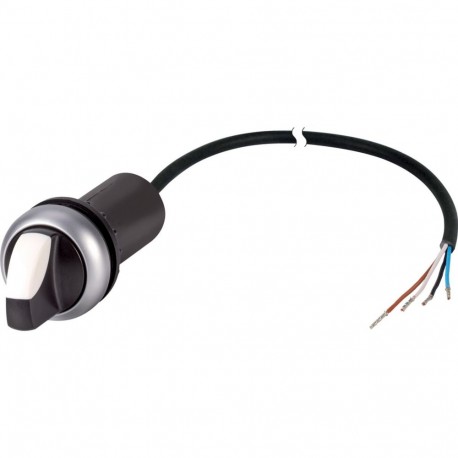

C22-WRK3-K11-P62 186172 Y7-186172 EATON ELECTRIC Changeover switch, classic, with thumb-grip, maintained, 3 ..
C22-WRK3-K11-P62
186172
Y7-186172
EATON - MOELLER
1 Pcs.
Automation > Selector switch, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller changeover switch, classic, with thumb-grip, maintained, 3 (part C22-WRK3-K11-P62) enables maintained multi-position circuit switching in industrial control desks. Maintained rotary actuators hold their selected position until manually changed.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- With light source (EF005905): No
- Colour button (EF000190): Black
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Degree of protection (IP) (EF005474): IP66
- Supply voltage (EF004127): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
UL
CE
VDE 0660
IEC/EN 60947-5-1
CSA File No.: 165628
CSA Class No.: 321103
UL File No.: E29184
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL listed, CSA certified
Features & Functions
With thumb-grip
Classical
General
IP66
NEMA Other
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
Contacts
1 failure per 17,000,000 swtching operations (statistically determined, at 17 V DC/7 mA: N/O contact
