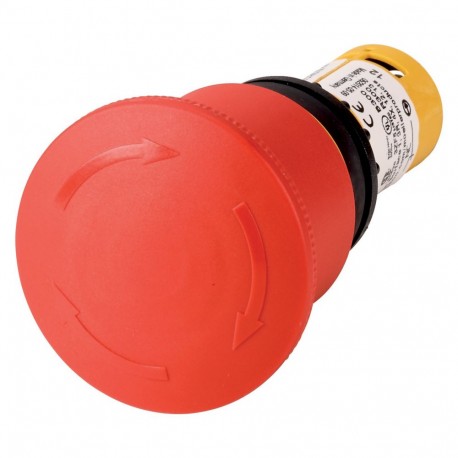

EATON - MOELLER C22-PVT45P-K11 C22-PVT45P-K11 121610 Y7-121610 EATON ELECTRIC Emergency-stop, 45mm, pull/turn release, 1NO1NC, black View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C22-PVT45P-K11 121610 Y7-121610 EATON ELECTRIC Emergency-stop, 45mm, pull/turn release, 1NO1NC, black

C22-PVT45P-K11

121610

Y7-121610

EATON - MOELLER

1 Pcs.

Emergency-stop, 45mm, pull/turn release, 1NO1NC, black C22-PVT45P-K11 Eaton Moeller® series C22 Emergency-stop, Palm-tree shape, 45 mm, Turn-to-release function, 1 NC, 1 N/O, Screw connection Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 45 mm, Illumination: Non-illuminated, Turn-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, Red mushroom head (RAL 3000), Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65 , Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Function: Turn-to-release function, Standards: IEC/EN 60947-5-5, VDE 0660

Automation > Emergency stop complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller emergency-stop device provides high-integrity circuit breaking for automated machinery, designed to immediately halt operations when safety is compromised. Panel builders mount these actuators on control desks to ensure workers have rapid physical access to emergency power isolation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Unlocking method (EF001403): Turn-release
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of contacts as normally open contact (EF008256): 1
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Mounting method (EF000003): Built-in
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Hole diameter (EF000079): 22.5 mm
  • Diameter cap (EF001423): 45 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series C22 Emergency-stop button
Catalog Number
121610
Model Code
C22-PVT45P-K11
EAN
4015081194285
Product Length/Depth
95 mm
Product Height
45 mm
Product Width
45 mm
Product Weight
0.055 kg
Certifications
CE

Features & Functions

Unlocking method
Turn-release

General

Degree of protection
IP67/IP69K
NEMA 4X, 13
Mounting method
Built-in
Mounting position
As required
Opening diameter
22.5 mm

Electrical rating

Rated insulation voltage (Ui)
250 V

Contacts

Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
