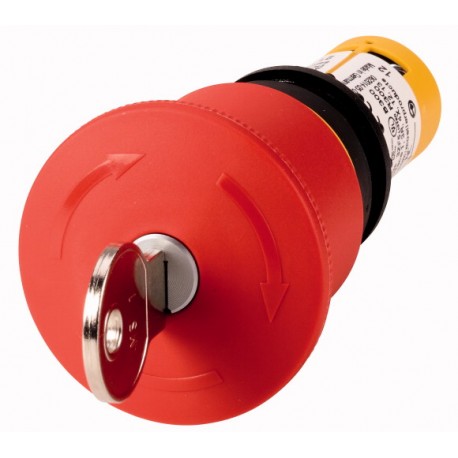

C22-PVS45P-MS1-K11 121618 EATON ELECTRIC Emergency-stop, 45mm, MS1, 1NO1NC, red
C22-PVS45P-MS1-K11
121618
EATON - MOELLER
1 Pcs.
Automation > Emergency stop complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller emergency-stop mushroom actuator ensures reliable manual safety shutdowns across heavy industrial installations. When pressed, the device locks into position to stop hazardous operations until authorized personnel reset the circuit using a dedicated mechanism.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Unlocking method (EF001403): Key-release
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as normally open contact (EF008256): 1
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
- Mounting method (EF000003): Built-in
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Hole diameter (EF000079): 22.5 mm
- Connection type auxiliary circuit (EF006820): Screw connection
- Diameter cap (EF001423): 45 mm
More info
▲Delivery program

= safety function, by positive opening to IEC/EN 60947-5-1Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
